Quick Start

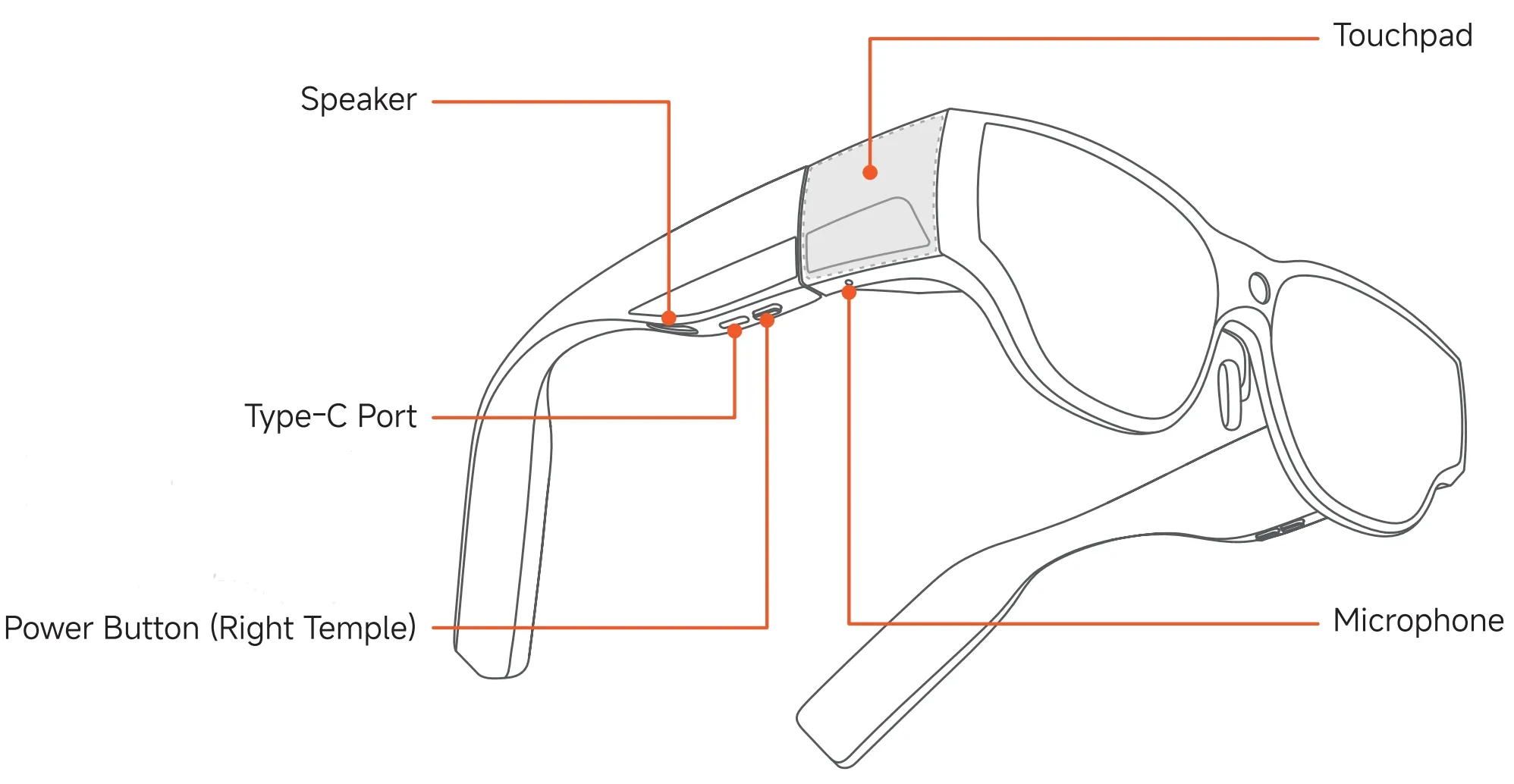

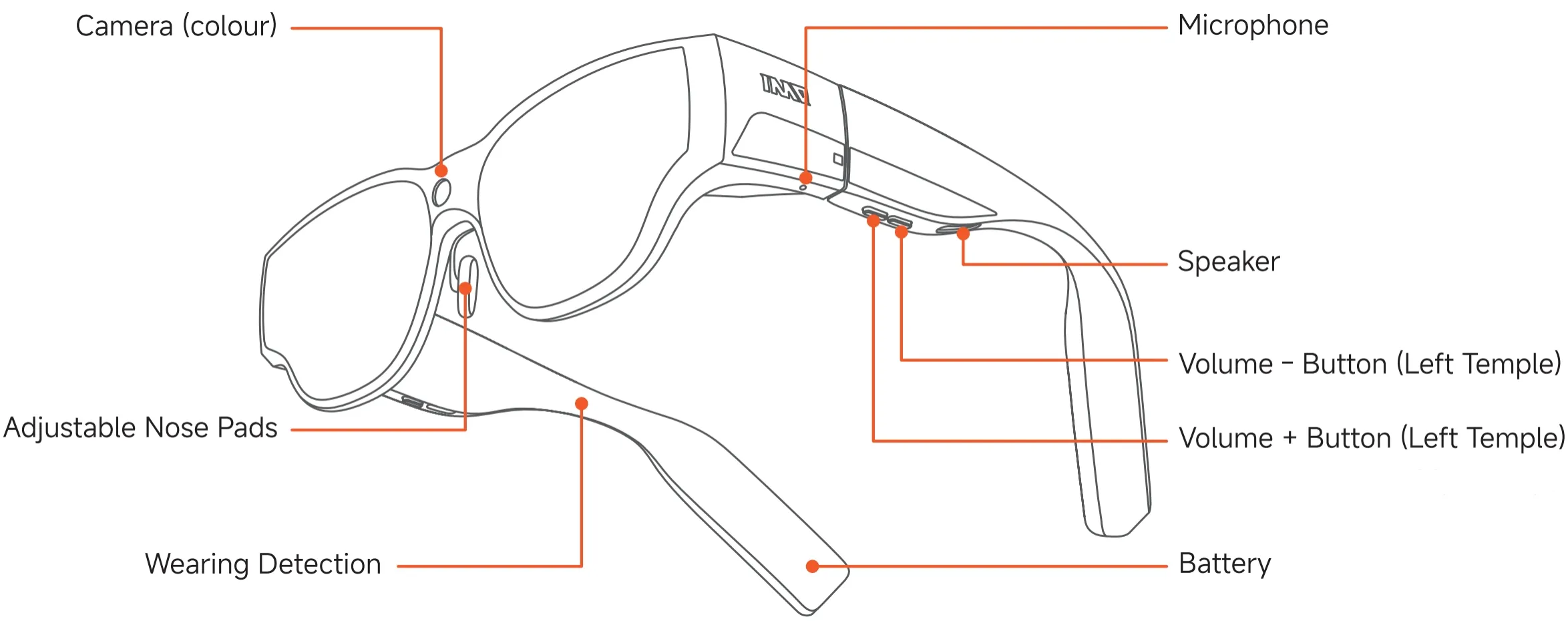

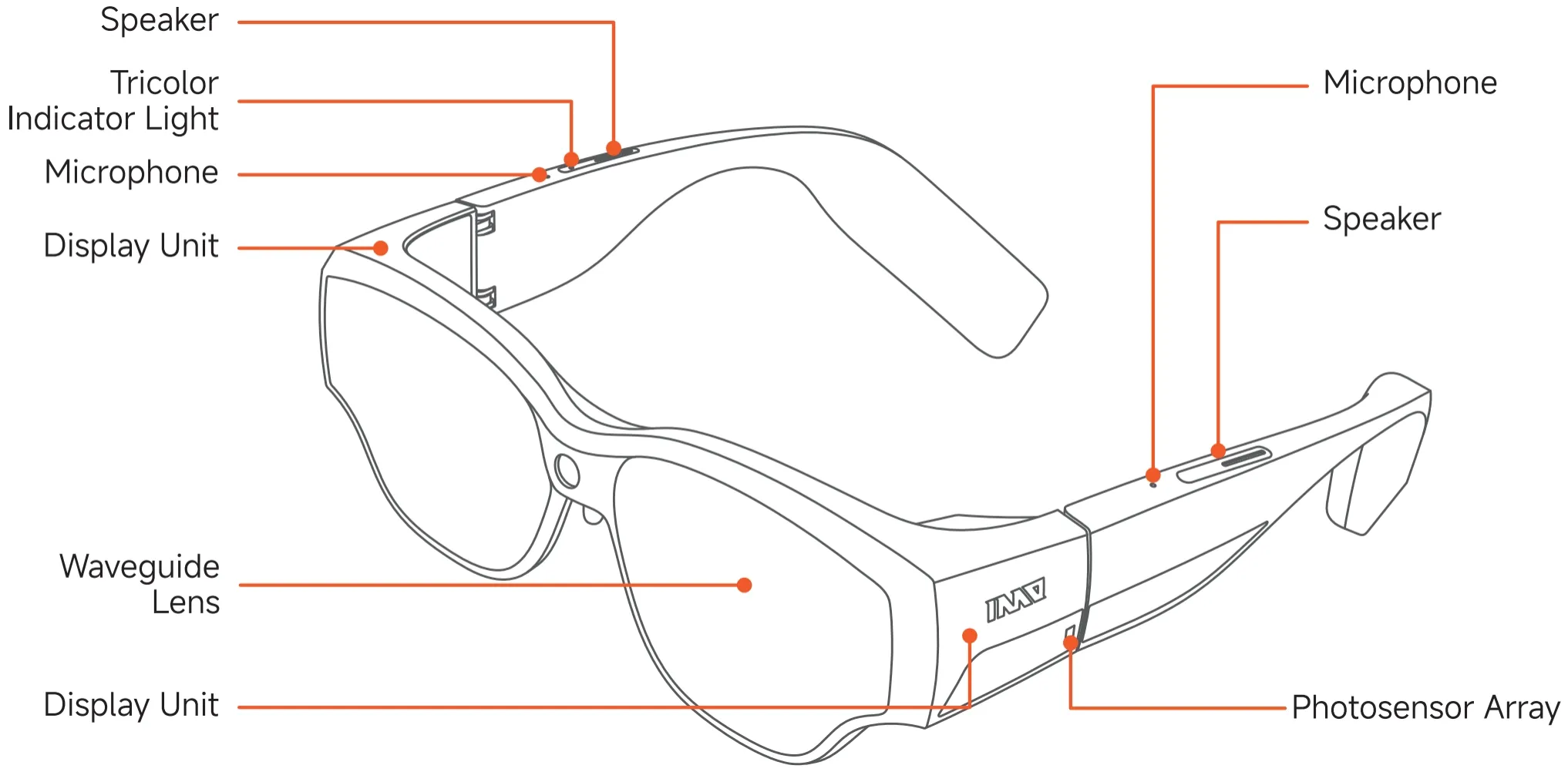

1. Product Overview
Section titled “1. Product Overview”

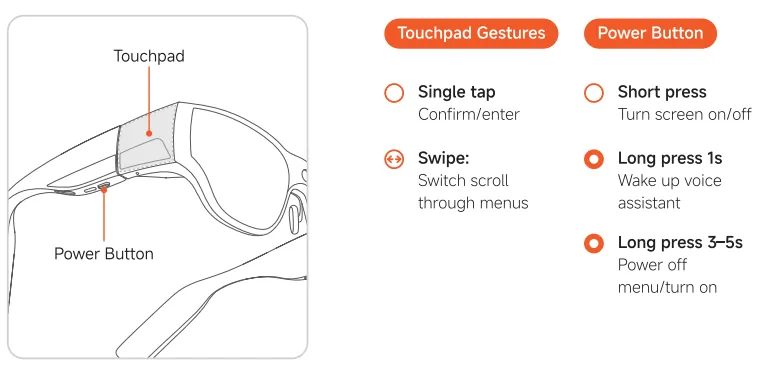

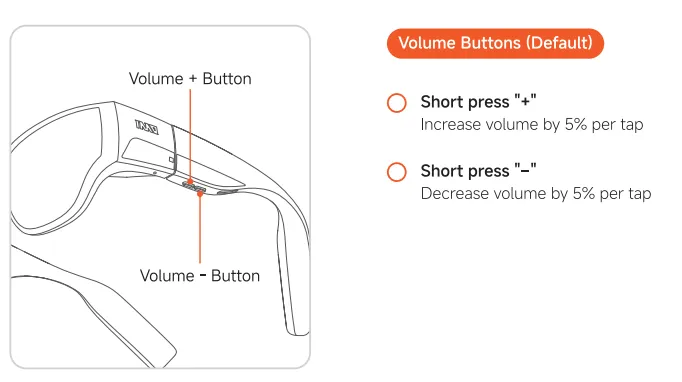

2. Operation Guide
Section titled “2. Operation Guide”

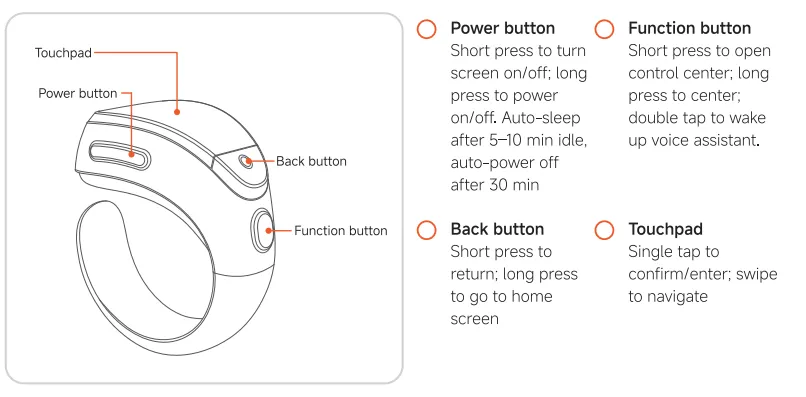

3. Interactive Ring
Section titled “3. Interactive Ring”
4. Start

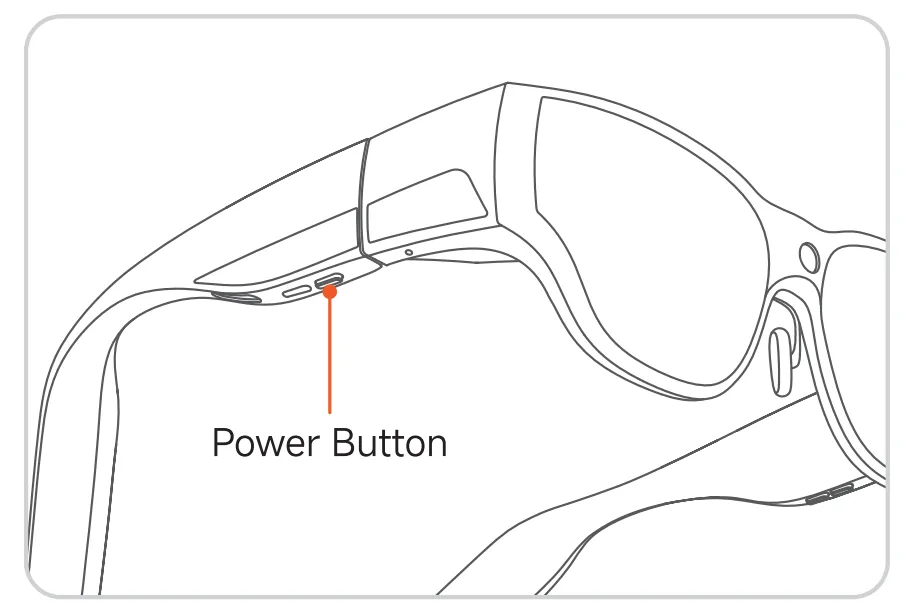

Section titled “4. Start”Step1 Power on
Section titled “Step1 Power on”Long press the power button for 2s until the blue light turns on.
Step2 Wear and adjust

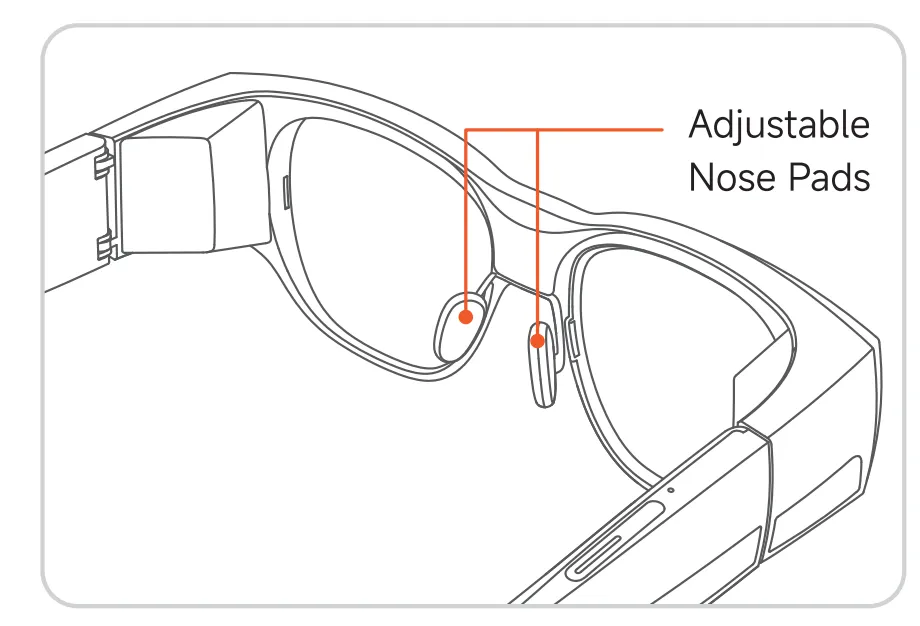

Section titled “Step2 Wear and adjust”Fine-tune the glasses and nose pads for comfort.
Tip: lf uncomfortable, replace the nose pad with a suitable size.
Step3 Follow on-screen instructions

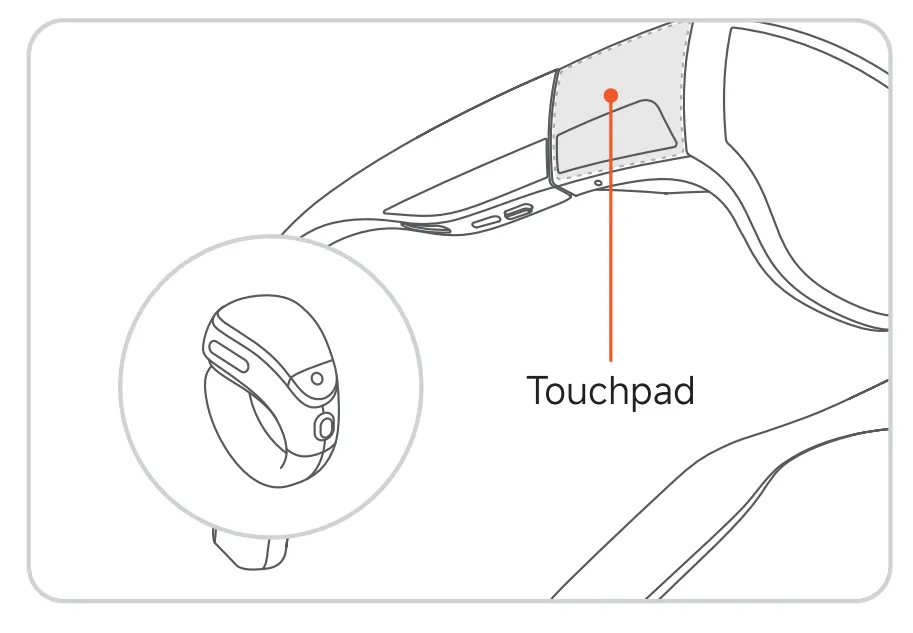

Section titled “Step3 Follow on-screen instructions”Use the right touchpad or ring for setup and network activation.

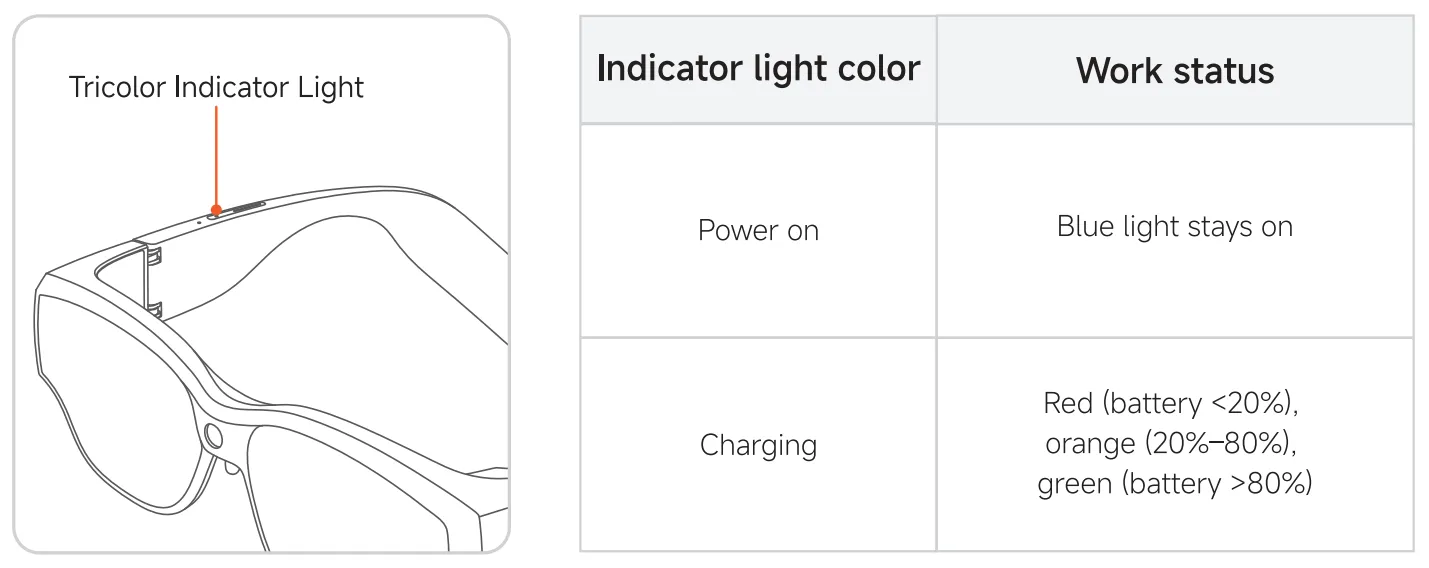

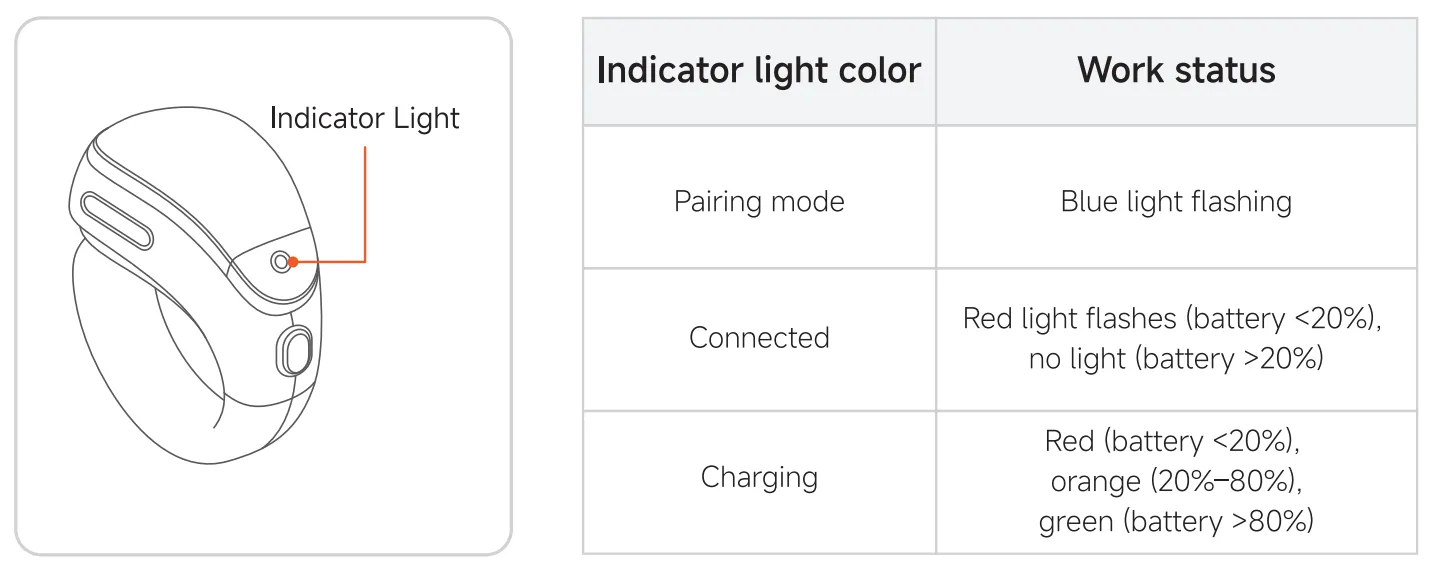

5. Power LED Indicators
Section titled “5. Power LED Indicators”Glasses
Section titled “Glasses”Tip: Use a 5V/1A charger. Fully charge before first use.

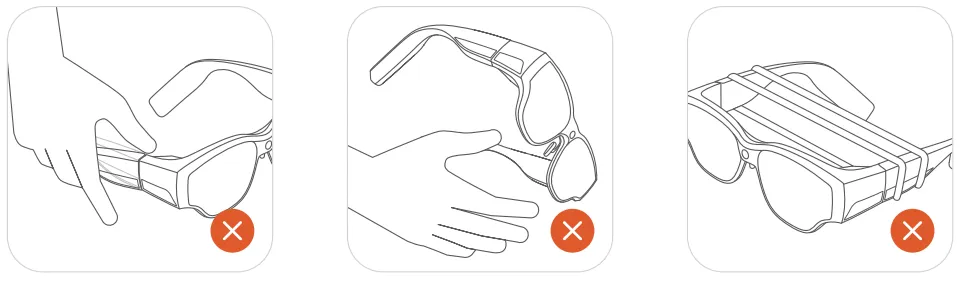

Prohibited Actions
Section titled “Prohibited Actions”
Beginning Guide
Section titled “Beginning Guide”Part 1 - Select language

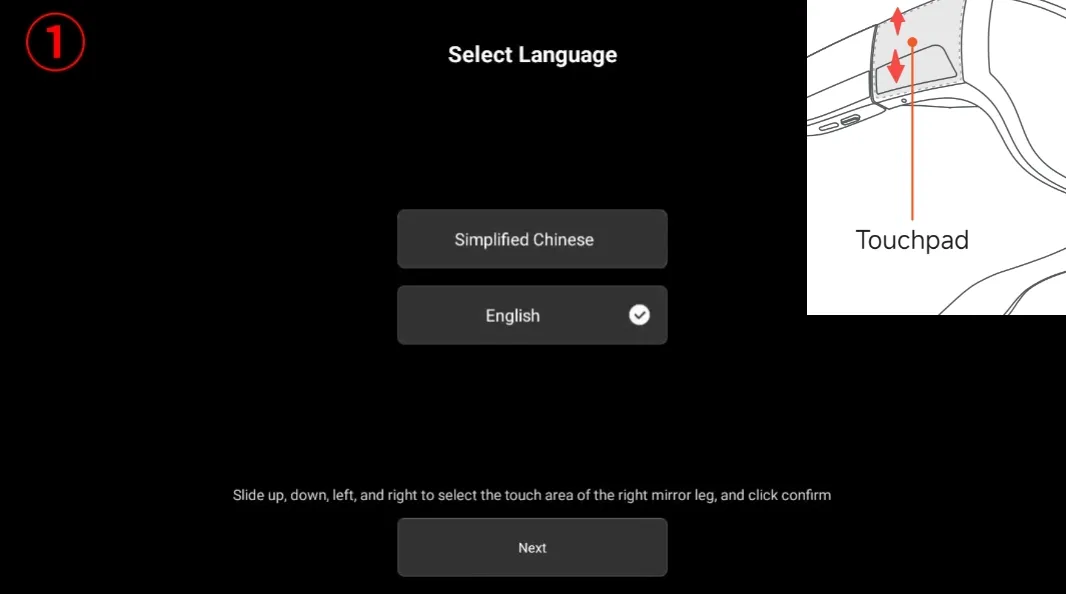

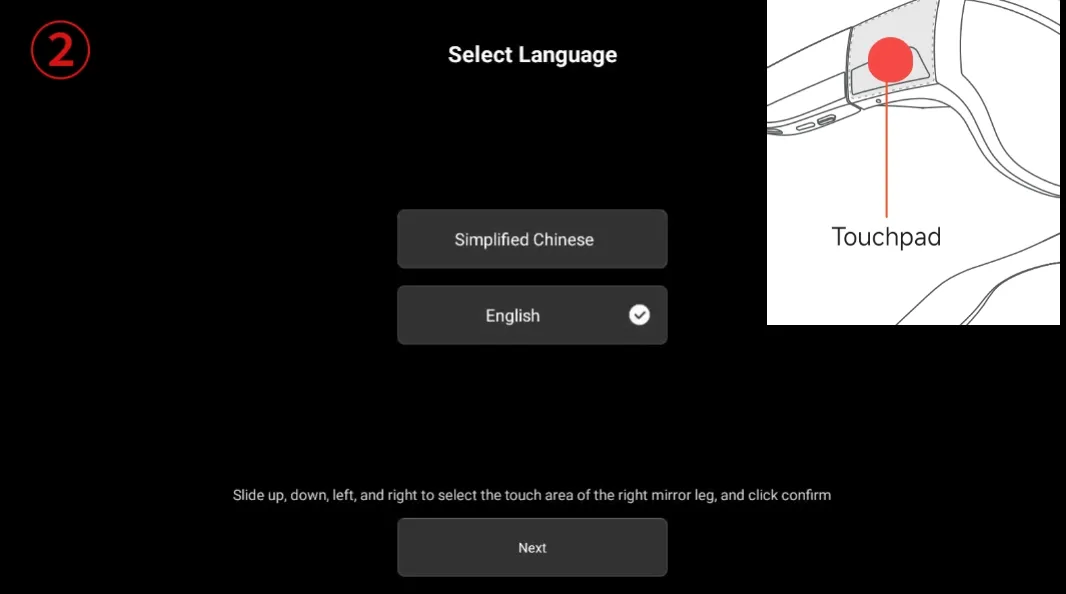

Section titled “Part 1 - Select language”① Select Language: Scroll up or down on the right temple’s touch control to choose your desired language.
② Once your selection is complete, swipe the touch control to proceed to the next step. Then, tap the touch control to access the “User Agreement and Privacy Policy.”
Part 2 - Agreement

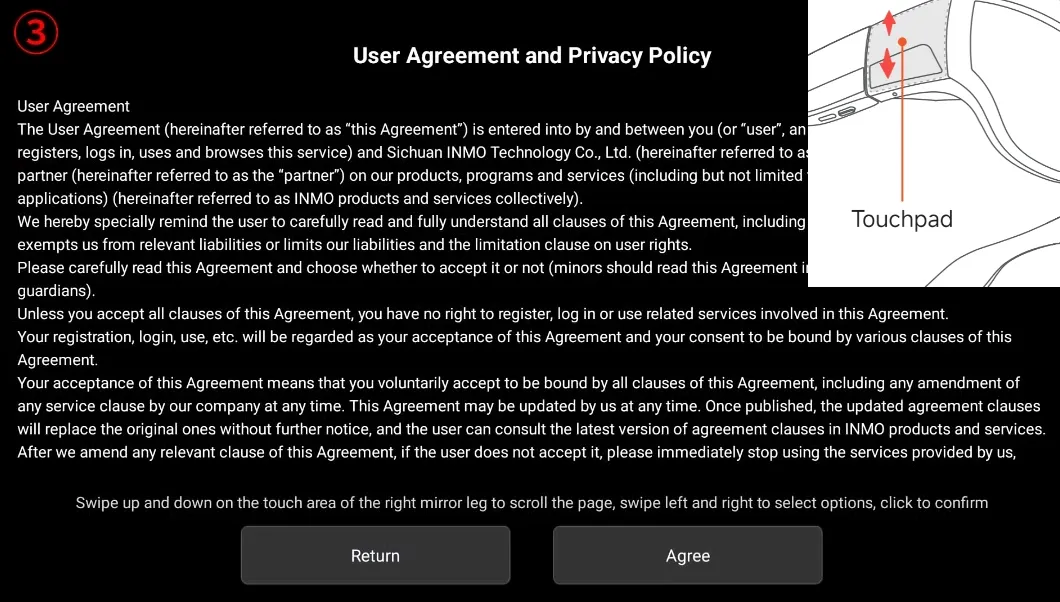

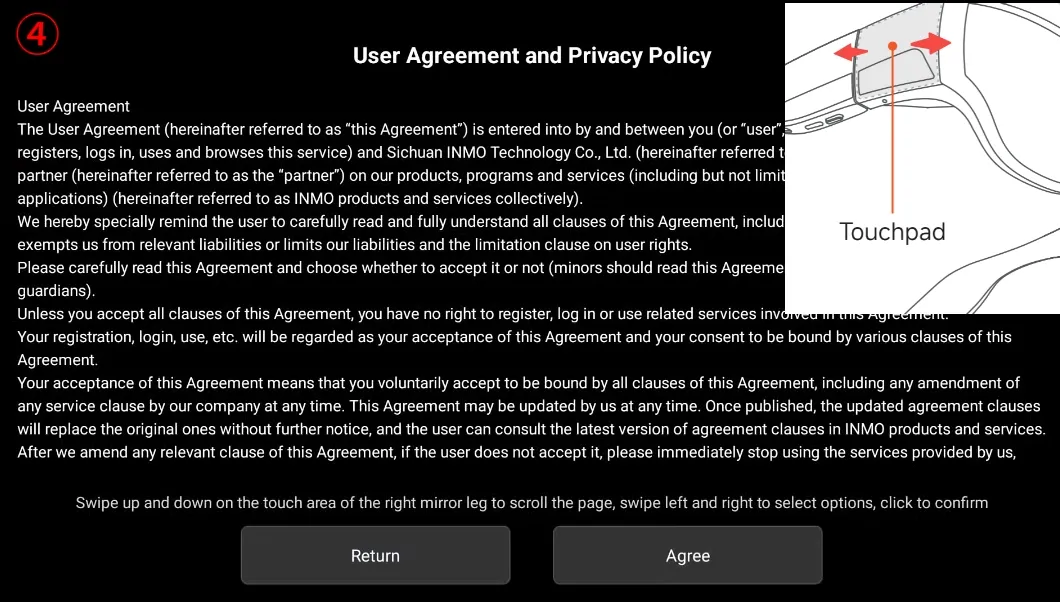

Section titled “Part 2 - Agreement”③ User Agreement and Privacy Policy: Scroll up or down on the right temple’s touch control to view the User Agreement and Privacy Policy.
④ Swipe left or right on the right temple’s touch control to select between “Reture” and “Agree.” Tap “Agree” to proceed to “Peripheral Pairing.”
Part 3 - Pairing ring control and touchpad device

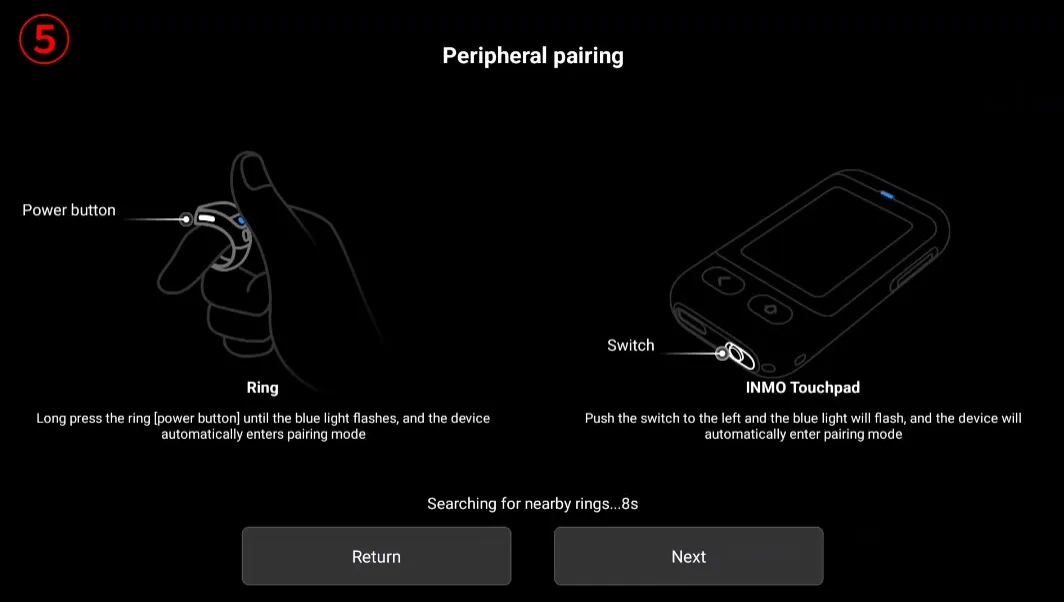

Section titled “Part 3 - Pairing ring control and touchpad device”⑤ Peripheral Pairing: Connect the “Ring” or “Touchpad.” Once connected successfully, it will automatically proceed to “Ring Interaction Instructions” (if a Touchpad is connected, it will redirect to “Touchpad Interaction Instructions”).

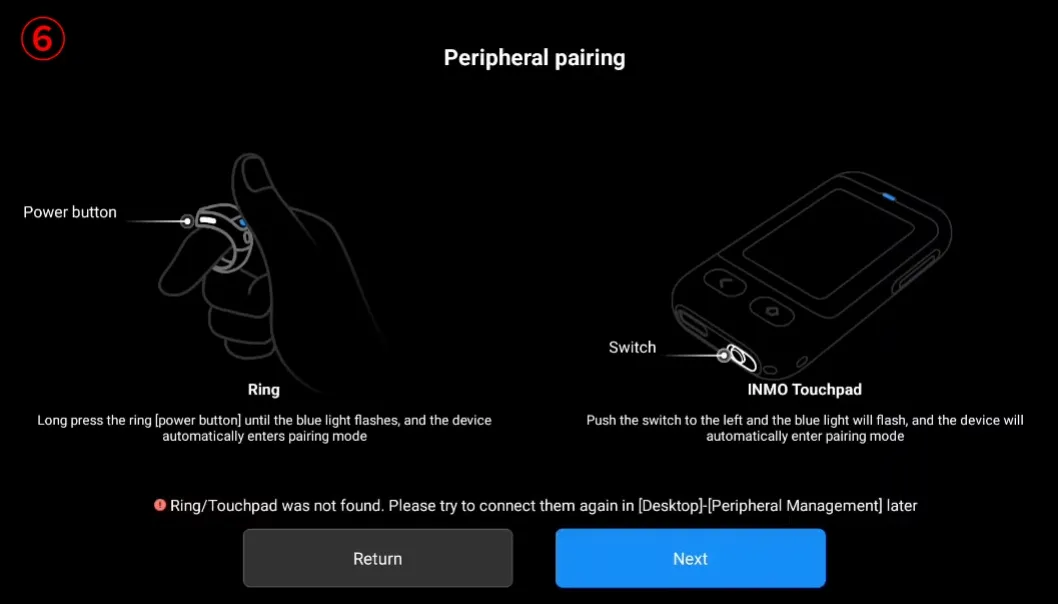

⑥ If you choose not to pair the “Ring” or “Touchpad” at this time, you can connect them later under “Desktop” - “Peripheral Management.” Tap “Next” to proceed to “Ring Basic Interaction Instructions.”
Part 4 - Familar with ring control

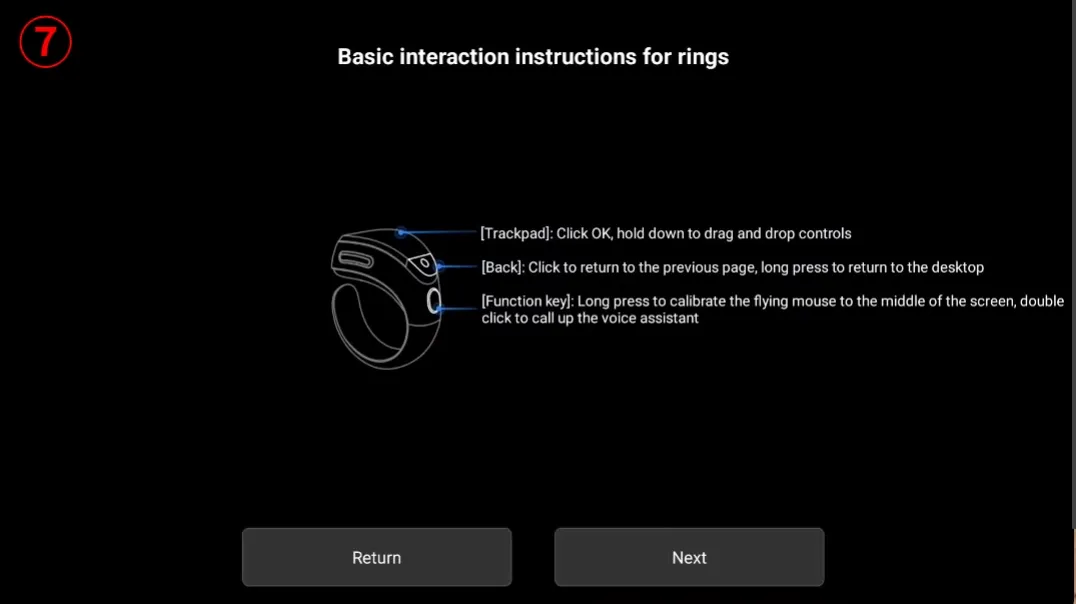

Section titled “Part 4 - Familar with ring control”⑦ Ring Basic Interaction Instructions: Access “Ring Basic Interaction Instructions” and review the Ring interaction instructions. Tap “Next” to test the Ring’s connectivity.

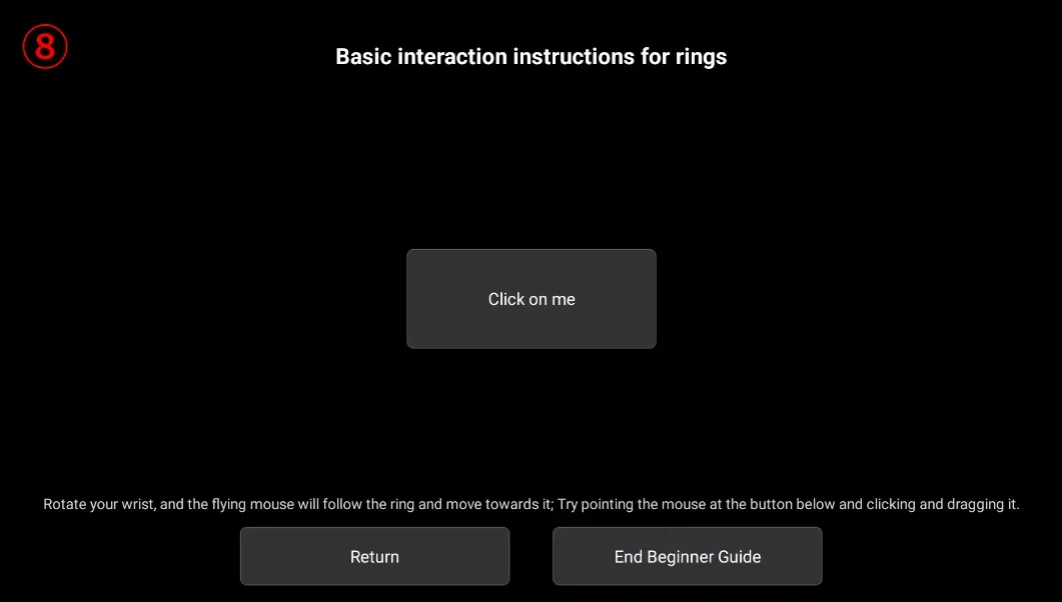

⑧ Testing and Exiting: Within the current window, users can single-tap the central square using the Ring to verify its proper function. Once the test is complete, tap “End New User Guide” to exit.
Part 5 - Power on/off and restart your glasses

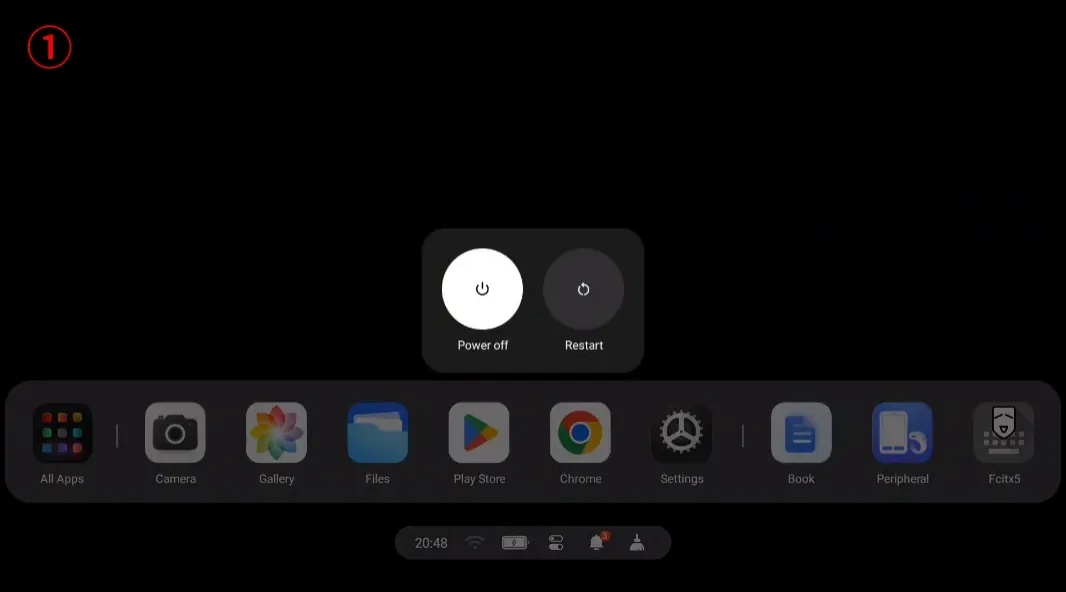

Section titled “Part 5 - Power on/off and restart your glasses”① Power Off/Restart: While the device is powered on, press and hold the power button on the temple for 3 seconds to display the power options menu. Swipe the touchpad to select “Shut down” or “Restart.”
② Force Restart: To force restart the smart glasses, press and hold the power button for approximately 10 seconds.
